See Exactly What's in a RoofAngle Report

Download a free sample and inspect the diagram, facet-level areas, pitch analysis, edge lengths, and waste tables before you spend a dollar.

Download the sample PDF Order a real report

The measurements in this report are remote estimates generated from aerial data and advanced mapping technology and standard project verification is recommended to confirm dimensions before use. This report is provided "as is," without any warranty of accuracy, completeness, or fitness for a particular purpose.

A snapshot of the report

Sample Report123 Main St, Dallas, TX

Roof Area4,525.98 ft²

Pitch12 / 12

Ridge98.02 ft

Hip153.68 ft

Valley74.21 ft

Eave182.40 ft

Waste tables: 0% / 5% / 10% / 15% / 20%Exports: ESX · XML · PDF

Real RoofAngle diagrams

From a straightforward gable to a multi-section estate, every facet, pitch, ridge, hip, valley, and eave is measured and labeled. These are real report diagrams.

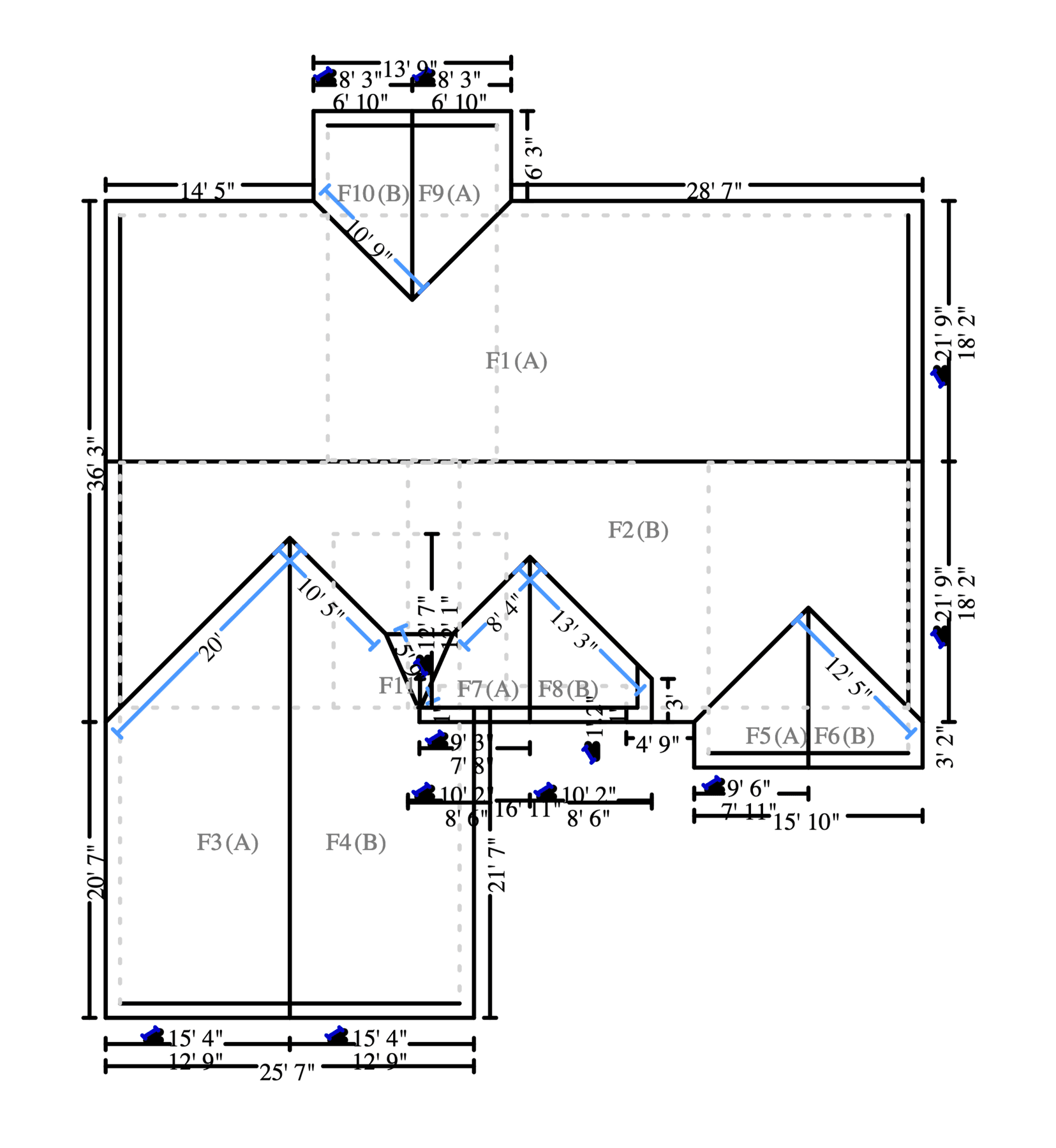

RoofAngle roof diagram of a gable and dormer roof with facet, pitch and edge measurements — Gable & dormers

RoofAngle roof diagram of a complex hip roof with facet-level areas and edge lengths — Complex hip roof

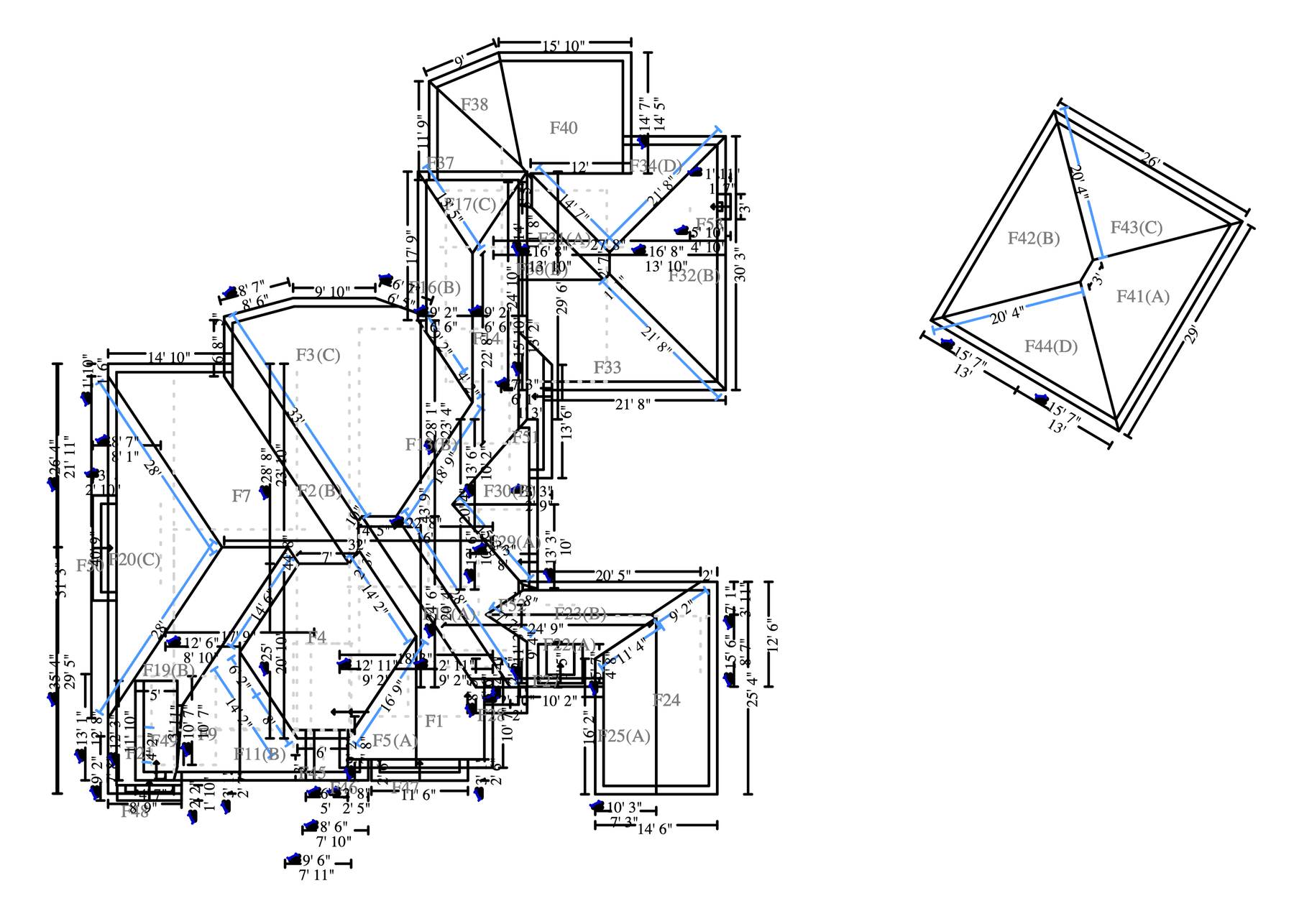

RoofAngle roof diagram of a home with a detached building, both measured in one report — Home + detached building

Residential roof orders include every detached garage and outbuilding at no extra charge. Tap any diagram to open it full size. Order as ESX, XML, or bundled with PDF (+$3).

Read the full sample report

All five pages, right in your browser. Prefer a copy? Download the PDF.

Everything inside the report

Facet-level areas

Square footage and pitch for every roof plane, not just one total.

Pitch analysis

Pitch distribution showing area and percentage at each pitch value.

Edge lengths

Ridge, hip, valley, rake, eave, and wall flashing measurements.

Waste tables

Built-in waste factors at 0%, 5%, 10%, 15%, and 20% for takeoffs.

Same data, your format

The real report delivers this data as ESX for Xactimate or XML for Symbility, with wall measurements included on request.

Human-reviewed accuracy

Every report is checked against the source imagery before delivery, with free revisions. Residential ESX reports start at $17. Rush from 4 hours on residential roof reports for $5 extra.

Sample Report FAQs

Yes. Download the free sample PDF from roofangle.com/sample-report to see the diagram, facet-level areas, pitch breakdown, edge lengths, and waste tables included in every RoofAngle report.

A roof diagram plus data tables: per-facet square footage and pitch, total area and squares, ridge, hip, valley, rake, and eave lengths, wall flashing, and waste factor tables at 0 to 20 percent.

ESX for Xactimate and XML for Symbility, with an optional PDF. Wall measurements are delivered inside your ESX or XML on request. Reports start at $17.

Liked the sample? Order the real thing

Enter an address, pick ESX or XML, and get your report in hours. From $17, no contract.

Start an order
